Single lane stick filling packaging machine
TM MACKY
- Based on the technology and know-how cultivated through the production of multi-lane machines, we have developed a highly versatile single-lane stick pack machine.
- By selecting a weighing device according to the application, it is possible to fill not only powder but also liquids and solids(but not available to share by 1 machine).
- The length can be freely set on the touch panel. The width can be changed quickly and easily by simply replacing a few parts.
- Options include various printers, nitrogen gas filling equipment, zigzag cutters, and Toyo's unique R-cut equipment.
Reference Specification
| Available stick width |
13.5mm - 45 mm |
| Available stick length |
50mm - 200mm |
| Filling volume |
5ml - 45ml |
| Speed |
max. 60rpm x 1lane = 60pcs/min |
| Option |
Measuring:Slide plate dosing/ Auger filler / Pumps for liquid or paste, Weigher/Counters, etc.
Seal part: Twill, grid(Standard)/Horizontal/ Vertical patterns/Bottle opening format for liquid filling.
Cutting part: Zigzag cutter / R cut
Others: Hopper level sensor/ Satic eliminator /Pinters/ Nitrogen gas filling device/ Air vibrator / Empty product detector / good/defective/ Discharge conveyor |
| Machine dimension |
W 1040mm × L 1360mm × H 1620mm |
| Machine weight |
Approximately 550kg |
| Utility (Power) |
AC200V, 3phase, 50/60Hz.7kVA |
| Utility (Compressed air) |
350 L/min (ANR) 0.5MPa |

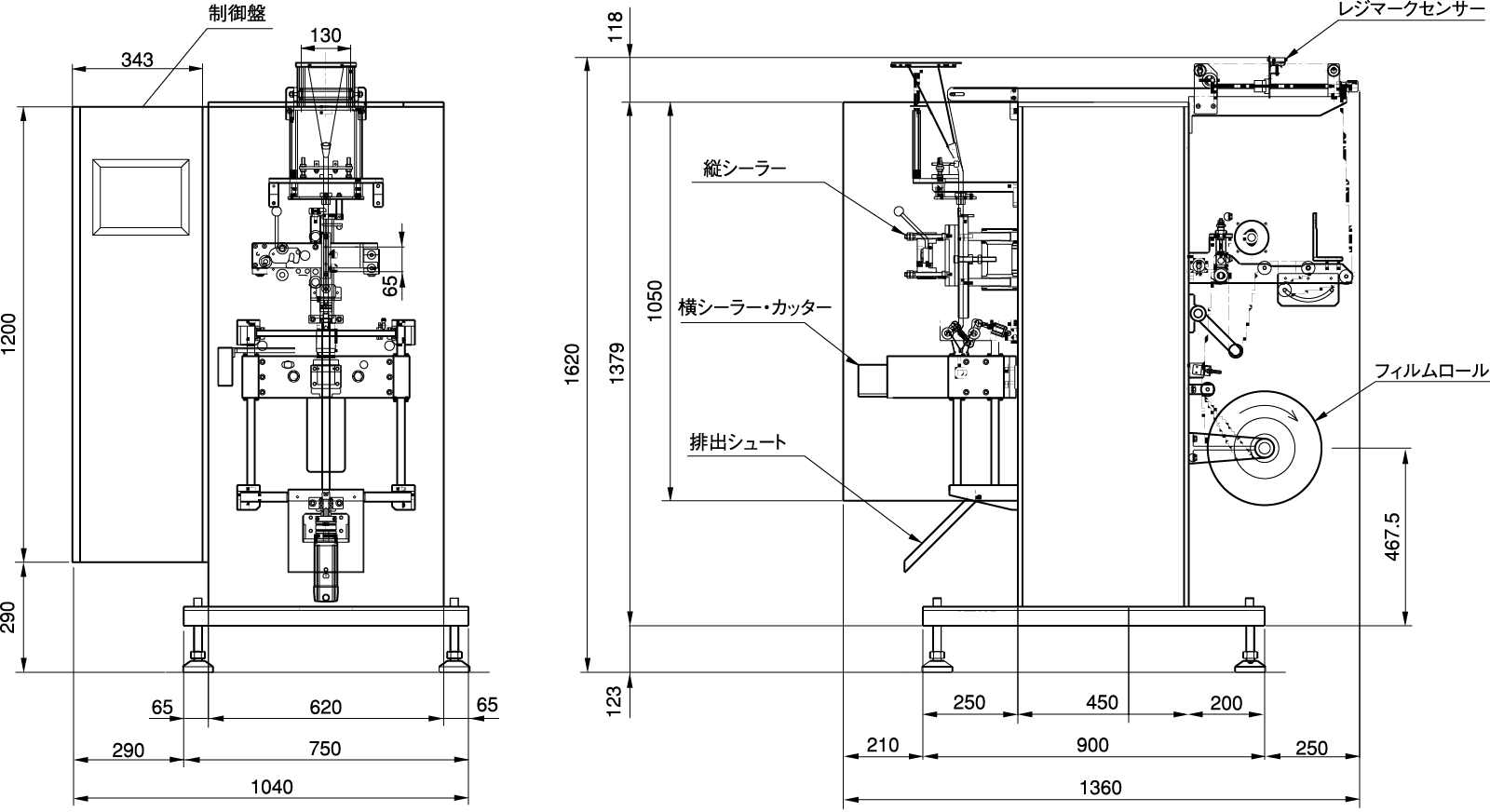

Machine dimension(unit: mm)
