Stick pack machine (Auger type)

TM-ZC

Stick pack machine (Auger type)
  • With TOYO's expertise and wide know-how of STICK PACKAGING, we now release a new type STICK PACKAGING MACHINE with Multiple Lane Auger Measuring Unit mounted in it.

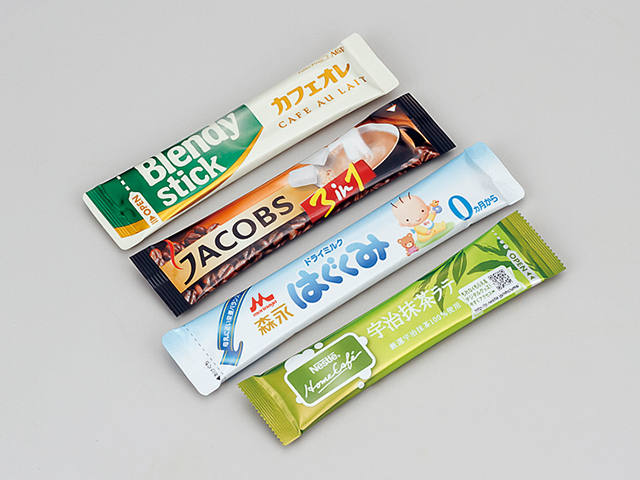

  • This makes it possible to measure/fill fine or even bad flow powder such as milk, coffee, chocolate, cereal, powdered green tea, pharmaceutical, health food, etc.
    Weight feedback can be controlled in combination with a check weigher.
  • The machine is servo motor drive which makes product change easy and fast by enabling pre-set of operation condition such as sachet length, filling weight, filling timing, etc. by operation panel.
  • Attachable options are Date coder, Reel guider, Nitrogen gas flush, l-notch cutter, Zigzag cutter, cutter elevator, etc.
Stick pack machine (Auger type)

Reference Specification

Available stick width 35mm
Available stick length 100mm - 190mm
Filling volume 5ml - 45ml
Speed max. 80rpm × 6lane = 480 pack/min
Film outer size max. 500 mm
Auger filler Screw diameter: 18mm, Screw length: 830mm, Screw center distance: 84mm, Contact part: SUS304, lndividual controlled servo driven, Servo motor: 200W × 6 units
Option Thermal roll printer, Reel guider, Nitrogen gas flusher, I-notch cutter, Zigzag cutter
Machine dimension Approximately W 1850mm × L 2250mm × H 2900mm
Machine weight Approximately 2000kg
Utility (Power) AC200V, 3phase, 50/60Hz, 6kVA
Utility (Compressed air) 800Nl/min 0.5MPa

Machine dimension(unit: mm)

Machine dimension
