Four-side seal filling packaging & Counting and collation & Cartoning line

MS・MG・MB・CARTONER

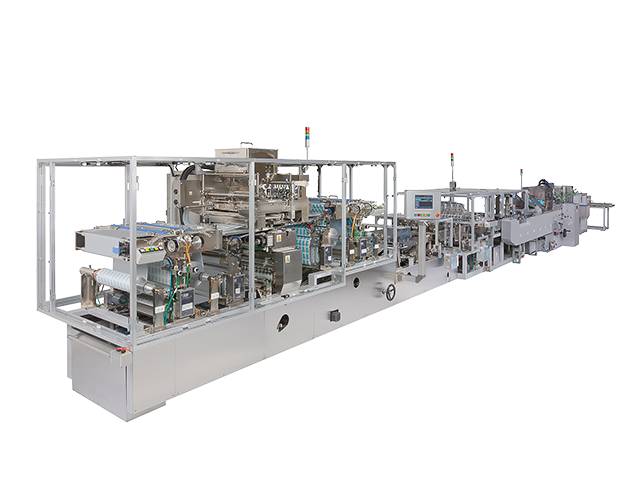

Four-side seal filling packaging & Counting and collation & Cartoning line
  • Automatic packaging line for four-sided sealed packaging products.
  • Automatic integrated line connected an alignment counting systme to a multi-lane four-side seal filling and packaging machine to perform bagging, cartoning, etc.
  • By replacing manual counting, bagging, and cartoning work with automation,
    You can reduce labor costs, solve problems such as staff shortages, human errors such as counting mistakes, etc.
  • Automatic transportation system allows products to be packaged in an aligned state within a carton or bag, giving added value to the product in terms of appearance.
  • We will be in charge of engineering the entire line.
  • We can propose a line layout that fits the factory layout space.
Four-side seal filling packaging & Counting and collation & Cartoning line

Reference Specification

Available width 30mm - 100mm *Fixed
Available length 100mm - 200mm *Fixed (Changeable by mechanice change parts)
Filling volume 5ml - 45ml
Speed (Filling machine) max. 100rpm x 20lane = 2000 pcs/min
Collating system Transfer: By attachnment chain (Intermitten or Continous) Alignment collation
Counting way: By accumulation any number
Option Check weigher, Sampling device, Inspection system
Bucket Conveyor Transfer to secondary packaging
Secondary packaging Cartoner. Horizontal pillow pack etc...
